Venetian blinds double glazed with Electric System (PG E)
Venetian blinds double glazed with Magnetic System (PG M)
Venetian blinds double glazed with Rope system (PG R)
Venetian blinds double glazed with Button system (PG B)
Venetian blinds glazed with button and rope system (PG BC)
Venetian blinds double glazed with Electric System (PG E)
Tilting and up/down movement of Venetian blinds is effected manually with the use of magnetic mechanism situated inside and outside the double glazing. Airtight seal.
Airtight seal 4+28+4 = (36mm)
Minimum width 48cm
Maximum width 325cm
Maximum surface 6,5m²
Wall mounted manual switch 85mm X 45mm
Transformer
220vAC
24vDC
Transformer 75mm X 50mm
220vAC
24vDCReceiver 100mm X 25mm
Remote control 160mm X 50mm/strong>
Single channel
Double channel
Six channels
Sixteen channels
Wall mounted 85mm X 85mm switch
receiver transformerRemote control 130mm X 43mm
Single channel
Double channel
Six channels
Sixteen channels
Transformer
220vAC
24vDCWall mounted manual double switch 85mm X 85mm
Wall mounted touch screen with four channels 170mm X 85mm
Switch – receiver – transformerRemote control 130mm X 43mm
Single channel
Double channel
Six channels
Sixteen channelsElectric contacts 47mm X 15mm

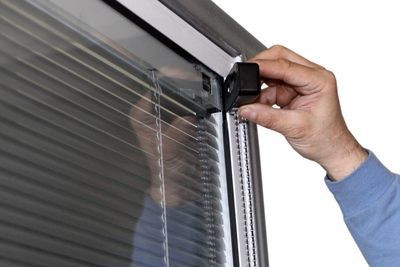

Venetian blinds double glazed with Magnetic System (PG M)
Tilting and up/down movement of Venetian blinds is effected manually with the use of magnetic mechanism situated inside and outside the double glazing. Airtight seal.
Airtight seal 4+22+4 = (30mm)
Minimum width 35cm
Maximum width 325cm
Maximum surface 3,6m²
Bilateral operation is possible by using two external magnets, one on each glass surface.

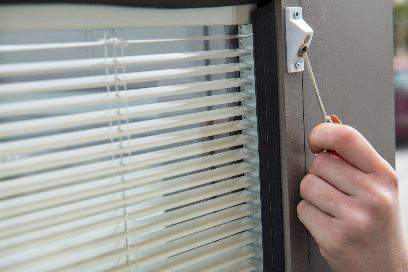

Venetian blinds double glazed with Rope system (PG R)
Tilting and up/down movement of Venetian blinds is effected manually with the use of decorative cord positioned on the outer side frame, either on the left or right.. Airtight seal.
Airtight seal = (30mm)
Minimum width 35cm
Maximum width 200cm
Maximum functional surface 2,5m²

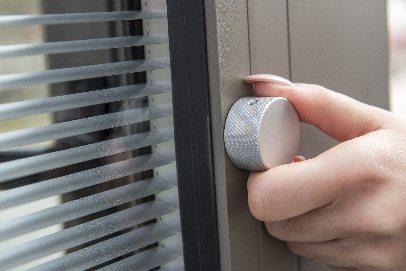

Venetian blinds double glazed with Button system (PG B)
Button system only provides tilting function. Tilting button is situated either on the right or left outer side of frame. NO airtight seal.
NO airtight seal 4+18+4 (26mm)
Minimum width 20cm
Maximum width 300cm
Maximum functional surface 4,0m²

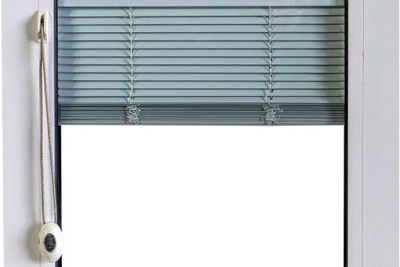

Venetian blinds glazed with button and rope system (PG BC)
The Up and Down movement of Venetian blinds is achieved by pulling the rope and tilting with the button, both situated on the side of outer frame, either on the left or right side. NO airtight seal.
NO airtight seal 4+18+4 (26mm)
Minimum width 20cm
Maximum width 100cm
Maximum operational dimension 1.5m²
Available colors:
4168 silver
617 grey
3201 white
538 beige
429F imitation wood
